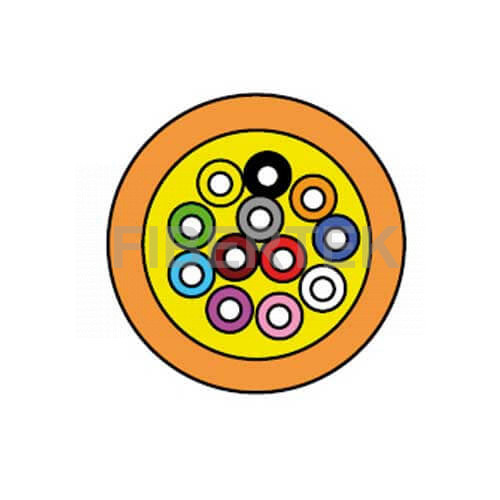

Non Armoured PE Tight Buffered Cable Diagram
Click to open expanded view
Non Armoured PE Tight Buffered Cable
Non Armoured PE Tight Buffered Cable Diagram

Tight Buffered Cable PE FTBP

The FTBP is a non armoured tight buffered fiber optic cable that comes with an outer PE jacket and can support a maximum of up to 24 900um optical fibers. The cable construction comprises aramid yarn that will provide added tensile strength to the cable.


Share :
Download Datasheet Datasheet Request a QuoteRequest a Quote

Number of optical fibers supported

The FTBP Tight Buffered Fiber Optic Cable can support a maximum of 24 0.9mm optical fibers.



Type of optical fibers supported

The FTBP Tight Buffered Fiber Optic Cable can support both Single-mode and Multimode optical fiber types. For the Single-mode optical fiber, G.652D, G.655 or G.657A1 are some of the optical fibers supported. As for the multimode optical fiber, OM1, OM2 or OM3 are some of the optical fibers supported.
