Non Armoured Unitube Cable FUTZ

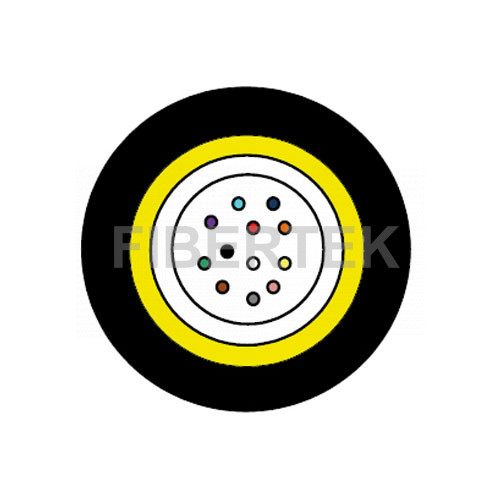

Non Armoured Unitube Cable FUTZ Diagram
Click to open expanded view
Non Armoured Unitube Cable FUTZ
Non Armoured Unitube Cable FUTZ Diagram

Non Armoured Unitube Cable LSZH FUTZ

The FUTZ is a non armoured unitube fiber cable that consists of a central tube filled with water blocking gel and can support up to a maximum of 12 optical fibers. The cable construction also includes aramid yarn serving as the peripheral strength member and an outer LSZH jacket. The outer LSZH jacket provides flame-retardant capability to the cable and emits low smoke non-toxic gas when it is burned during a fire breakout.


Share :
Download Datasheet Datasheet Request a QuoteRequest a Quote

Number of optical fibers supported

A maximum of 12 optical fibers is supported by the FUTZ non armoured unitube fiber optic cable.



Type of optical fibers supported

Optical fibers from both single-mode and multimode types are supported. Some of the common optical fibers supported are G.652D, OM1 and OM2.
