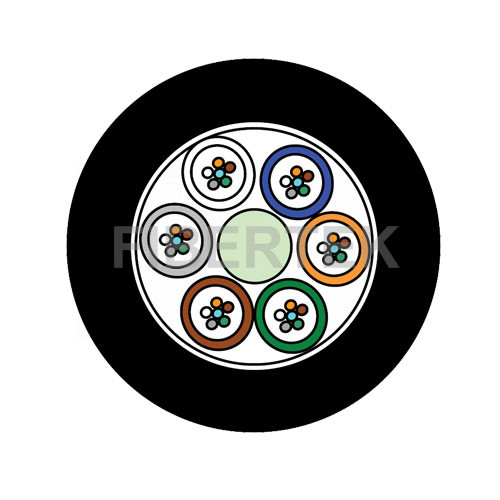

Non Armoured Loose Tube Cable FLTFZ Diagram
Click to open expanded view
Non Armoured Loose Tube Cable FLTFZ
Non Armoured Loose Tube Cable FLTFZ Diagram

Non Armoured Loose Tube Fiber Optic Cable LSZH FLTFZ

The FLTFZ Non Armoured Loose Tube Fiber Optic Cable comes with a construction that is made up of 6 loose tube cables that can hold up to 6 optical fibers each. This cable has water blocking gel, water blocking tape and a layer of LSZH outer jacket to prevent water penetration. On the other hand, the LSZH jacket also provides the flame-retardant capability to the cable. The cable does not contain any metallic parts or electric conductors, thus making it an All-Dielectric cable.


Share :
Download Datasheet Datasheet Request a QuoteRequest a Quote

Number of optical fibers supported

The FLTFZ Non Armoured Loose Tube Fiber Optic cable supports up to 6 loose tubes which can support a total of 6 optical fibers each.



Type of optical fibers supported

Both multimode and single-mode optical fibers types can be deployed depending on the requirements. G.652D, OM1 and OM2 are some of the common optical types that are supported. Other optical fibers types are also available.
