Armoured LSZH Loose Tube Fiber Optic Cable FLTCZ

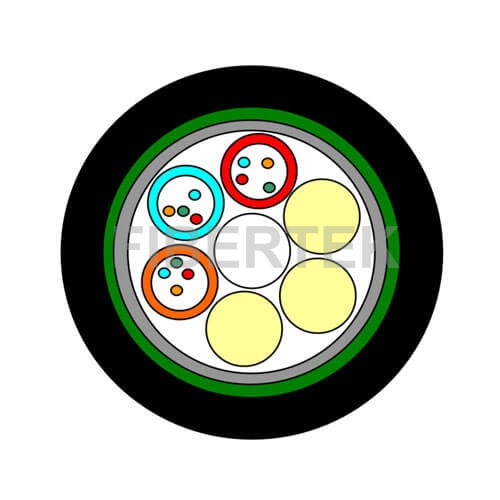

The FLTCZ is an armoured loose tube fiber optic cable that consists of a central strength member made of steel and 6 loose tubes filled with water-blocking gel. To protect the optical fibers from water penetration, the cable includes water-blocking tape, corrugated steel tape armour, and an LSZH outer jacket. The corrugated steel tape also functions as armour, providing the cable with added mechanical and rodent protection. Additionally, the flame-retardant Low Smoke Zero Halogen outer jacket (LSZH) gives the cable flame-retardant capabilities in the event of a fire.

Share :

Number of optical fibers supported

Each loose tube of the FLTCZ fiber optic cable can be filled up to a maximum of 12 optical fibers. The cable in total can support up to 72 optical fibers.



Type of optical fibers supported

The FLTCZ armoured loose tube fiber optic cable supports both single-mode and multimode optical fiber types with the G.652D, OM1 and OM2 as some of the most common optical fibers deployed.
